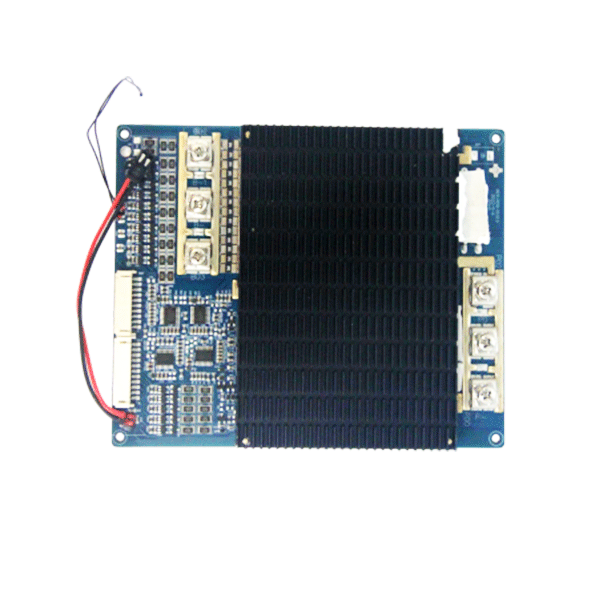

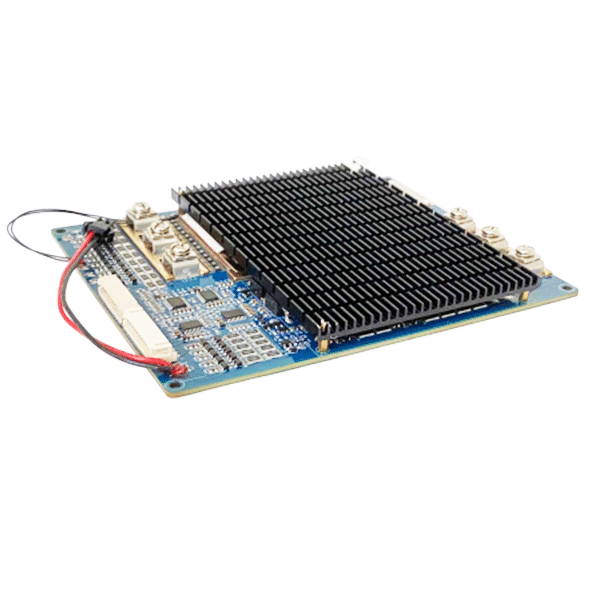

9S 33.3V BMS 100A/ Battery Protection Circuit Module (BMS/PCM/PCB) for 9S 33.3V Li-ion Battery Packs
LTN9S100A100A001
2 in stock
Description
9S 33.3V BMS
Over charge detection voltage: 4.25V±0.025V
Over charge release voltage: 4.05V±0.05V
Over discharge detection voltage: 2.70V±0.05V
Over discharge release voltage: 2.90V±0.1V
Features and Benefits
1. Protection Circuit Board for 33.3V 9S Li-ion battery pack;
2. BMS applies for 9 cells Li-ion battery pack;
3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;
4. Compatible with Li-ion cells;
5. The Maximal working current: 100A;
6. With cell balance/equilibrium function;
7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage
and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have
longer service life.
