LTN3S12A12A001

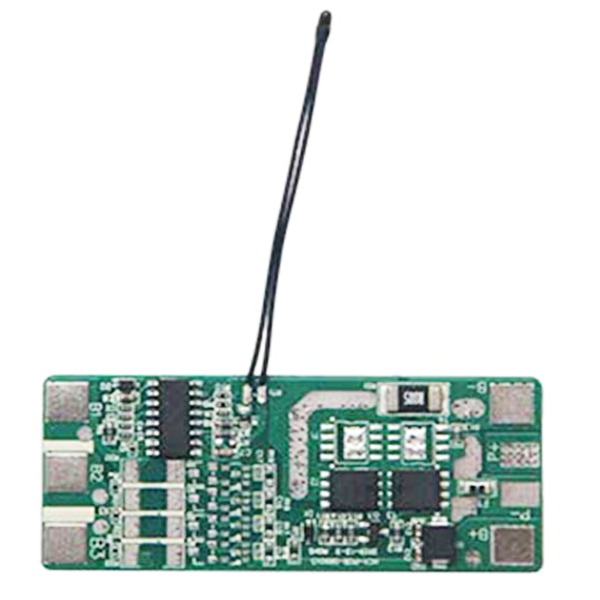

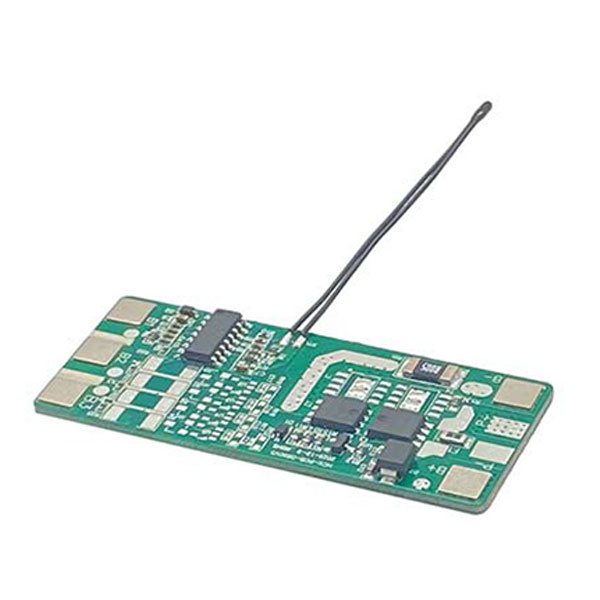

3S 11.1V BMS 12A/ Battery Protection Circuit Module (BMS/PCM/PCB) for 3S 11.1V Li-ion/Li-Polymer Battery Packs

100 in stock

3S 11.1V BMS

Over charge detection voltage: 4.225V±0.025V

Over charge release voltage: 4.125V±0.05V

Over discharge detection voltage: 2.70V±0.08V

Over discharge release voltage: 3.00V±0.1V

1. Protection Circuit Board for 3S 11.1V Li-ion and Li-Polymer battery pack;

2. BMS applies for 3 cells Li-ion and Li-Polymer battery pack;

3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;

4. The Maximal working current: 12A;

5. With cell balance/equilibrium function;

6. Compatible with both Li-ion and Li-Polymer cells;

7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage

and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have

longer service life.
