LTF8S5A5A001

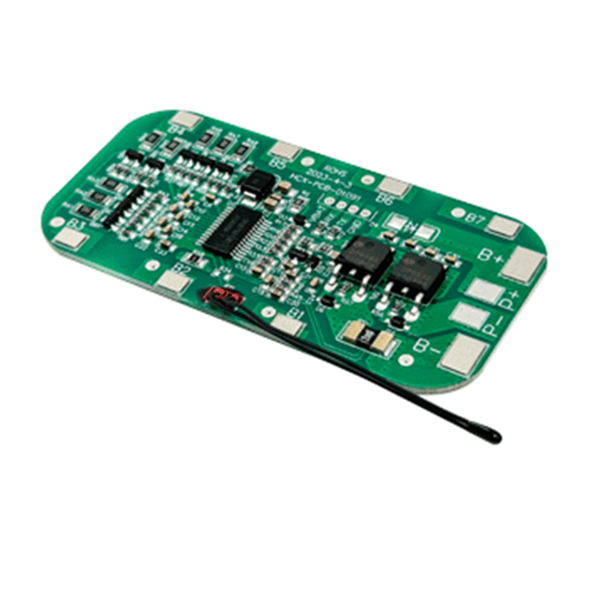

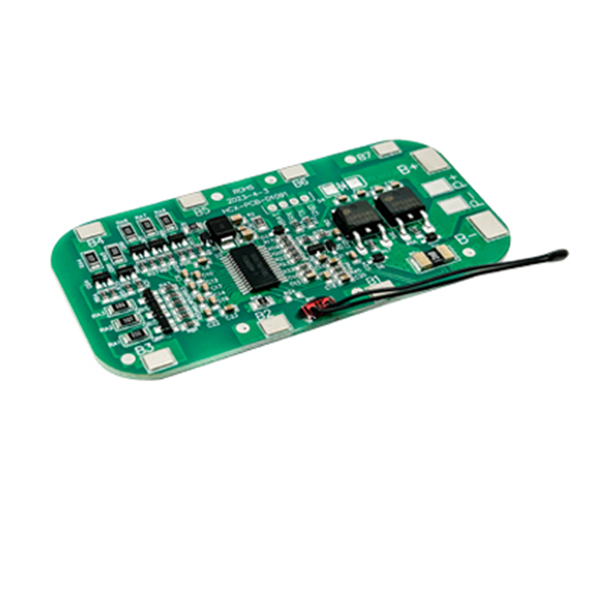

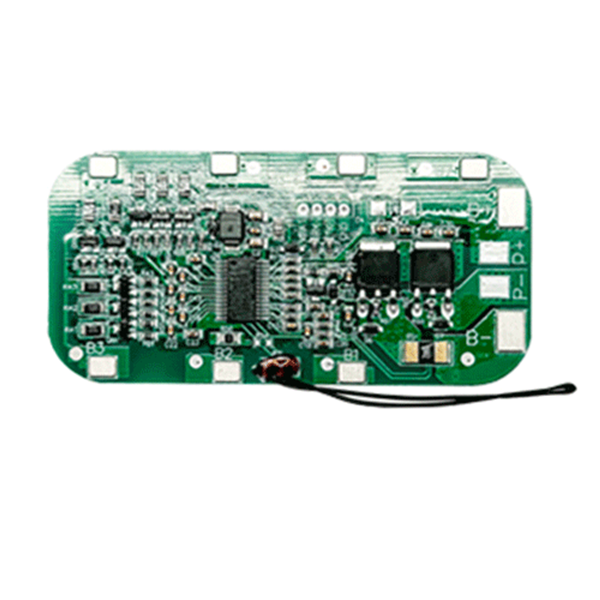

8S 25.6V BMS 5A/ Battery Protection Circuit Module (BMS/PCM/PCB) for 8S 25.6V LiFePO4 Battery Packs

2 in stock

8S 25.6V BMS

Over charge detection voltage: 3.75V±0.025V

Over charge release voltage: 3.55V±0.05V

Over discharge detection voltage: 2.20V±0.08V

Over discharge release voltage: 2.50V±0.10V

1. Protection Circuit Board for 25.6V 8S LiFePO4 battery pack;

2. BMS applies for 8 cells LiFePO4 battery pack;

3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;

4. Compatible with Li-ion cells;

5. The Maximal working current: 5A;

6. With cell balance/equilibrium function;

7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage

and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have

longer service life.
