LTF30S20A20A001

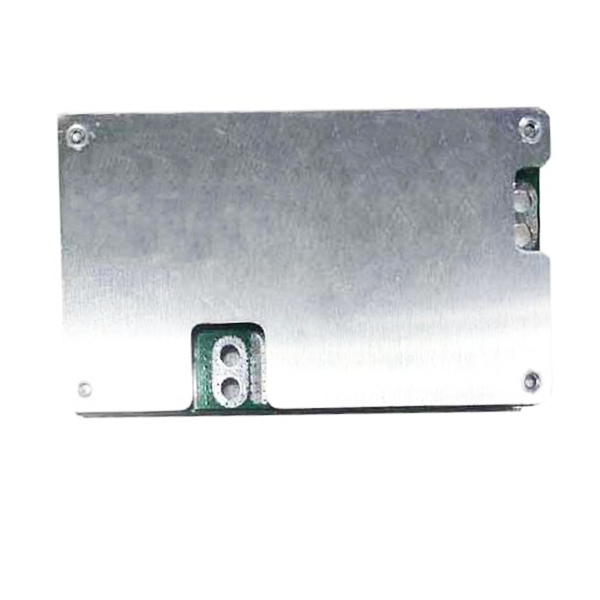

30S 96V BMS 20A/ Battery Protection Circuit Module (BMS/PCM/PCB) for 30S 96V LiFePO4 Battery Packs

1 in stock

30S 96V BMS

Over charge detection voltage: 3.65V±0.025V

Over charge release voltage: 3.50V±0.05V

Over discharge detection voltage: 2.30V±0.05V

Over discharge release voltage: 2.70V±0.1V

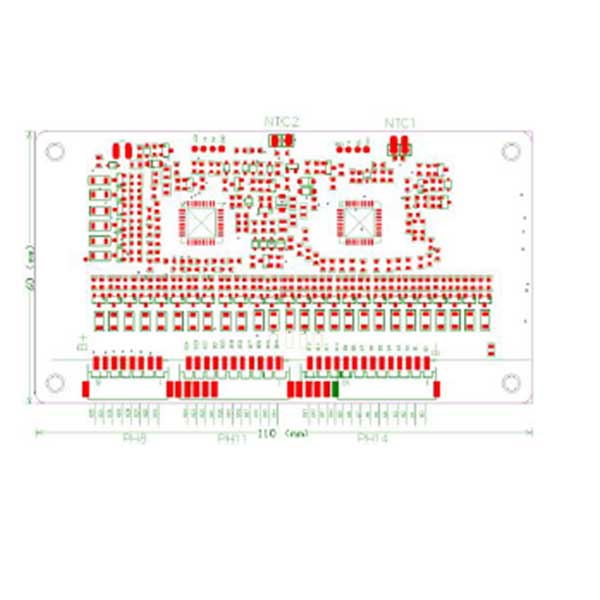

1. Protection Circuit Board for 96V 30S LiFePO4 battery pack;

2. BMS applies for 30 cells LiFePO4 battery pack;

3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;

4. Compatible with LiFePO4 cells;

5. The Maximal working current: 20A;

6. With cell balance/equilibrium function;

7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage

and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have

longer service life.
