LTF17S40A40A001

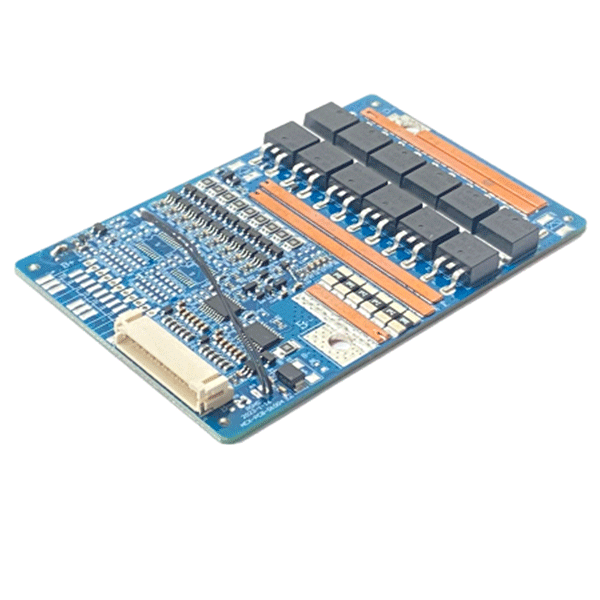

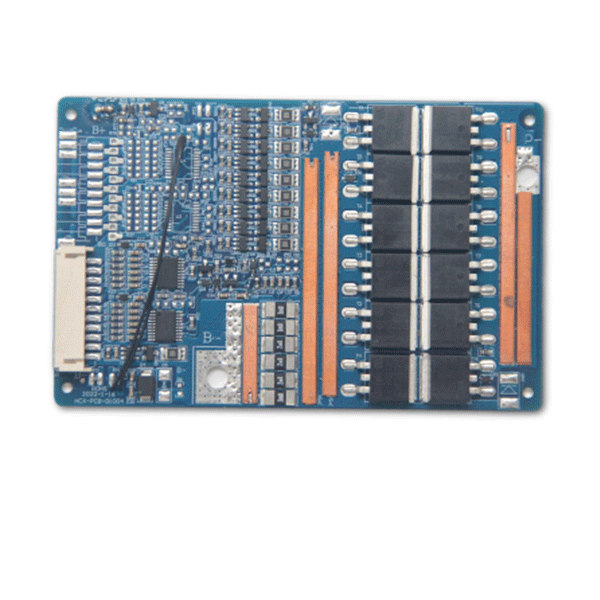

17S 54.4V BMS 40A/ Battery Protection Circuit Module (BMS/PCM/PCB) for 17S 54.4V LiFePO4 Battery Packs

100 in stock

17S 54.4V BMS

Over charge detection voltage: 3.90V±0.02V

Over charge release voltage: 3.70V±0.05V

Over discharge detection voltage: 2.00V±0.05V

Over discharge release voltage: 2.40V±0.1V

1. Protection Circuit Board for 54.4V 17S LiFePO4 battery pack;

2. BMS applies for 17 cells LiFePO4 battery pack;

3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;

4. Compatible with LiFePO4 cells;

5. The Maximal working current: 40A;

6. With cell balance/equilibrium function;

7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage

and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have

longer service life.
