LTF13S100A100A001

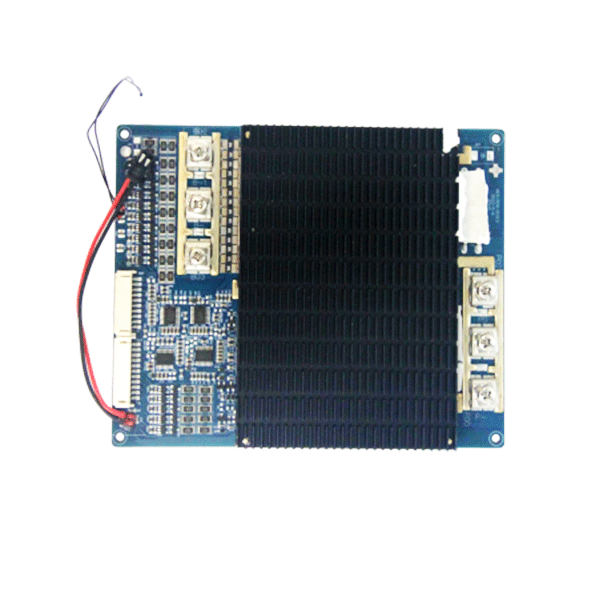

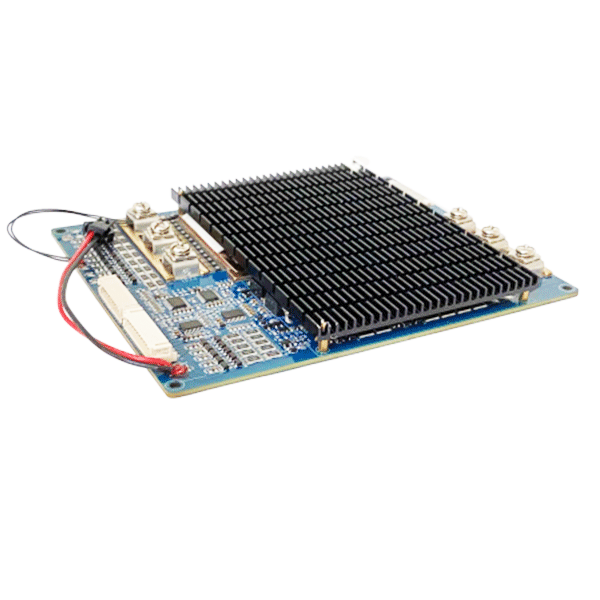

13S 41.6V BMS 100A/ Battery Protection Circuit Module (BMS/PCM/PCB) for 13S 41.6V LiFePO4 Battery Packs

2 in stock

13S 41.6V BMS

Over charge detection voltage: 3.90V±0.05V

Over charge release voltage: 3.70V±0.05V

Over discharge detection voltage: 2.00V±0.05V

Over discharge release voltage: 2.40V±0.1V

1. Protection Circuit Board for 41.6V 13S LiFePO4 battery pack;

2. BMS applies for 13 cells LiFePO4 battery pack;

3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;

4. Compatible with LiFePO4 cells;

5. The Maximal working current: 100A;

6. With cell balance/equilibrium function;

7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage

and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have

longer service life.
