LTN30S100A100A001

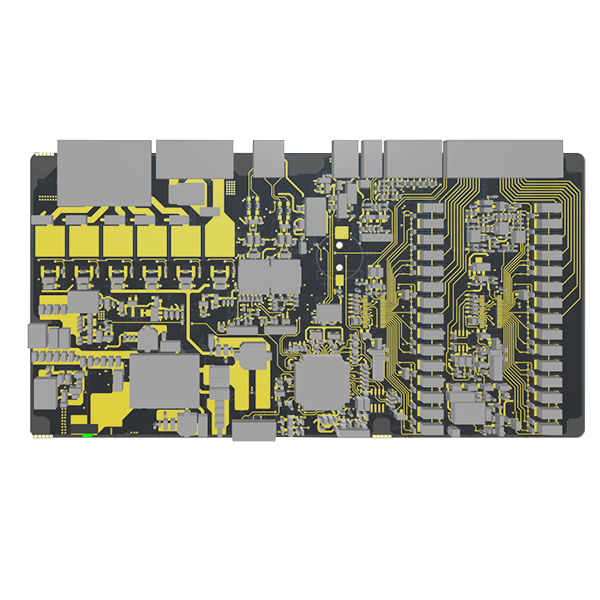

30S 111V BMS 100-1000A (can be more, depends on relay selection)/ Battery Protection Circuit Module (BMS/PCM/PCB) for 30S 111V Li-ion Battery Packs

2 in stock

30S 111V BMS

Over charge detection voltage: 4.25V±0.025V

Over charge release voltage: 4.15V±0.025V

Over discharge detection voltage: 2.70V±0.05V

Over discharge release voltage: 3.00V±0.10V

1. Protection Circuit Board for 111V 30S Li-ion battery pack;

2. BMS applies for 30 cells Li-ion battery pack;

3. To prevent the battery packs from overcharge, over discharge, over current, over temperature, short circuit ;

4. Compatible with Li-ion cells;

5. The Maximal working current: 100-1000A(can be more, depends on relay selection);

6. With cell balance/equilibrium function;

7. How balancing function works? After battery pack is fully charged. BMS will detect each cell’s voltage

and trim higher voltage down until other cells reach the same voltage level. Therefore, it helps cells have

longer service life.

8. Communication Protoclo: RS485/CANBus/UART/Bluetooth(Optional).
